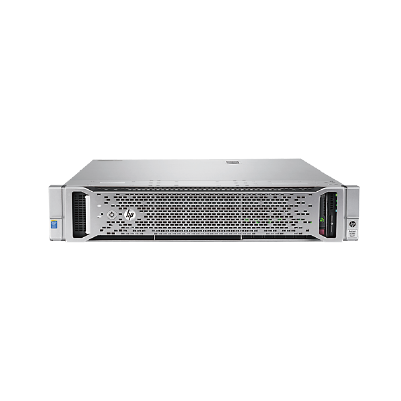

VDS6158

Working with Abloomy’s Wi-Fi cloud platform and probe devices, the VDS collects and stores data from the customer’s network or business operation site and performs data analytics and visualization. It can be either appliance based or deployed on commodity off-the-shelf servers in customer’s data centers. The standard version of VDS provides four application modules: data collection and storage, data analytics, visualization and LBS. It can be deployed in the customer’s premises to protect data privacy. With the LBS-based heat map function, the VDS can help customers to understand the running state of their networks and the real-time distribution of visitors on their business operation sites. Integrated with the IT log services, the VDS can collect and store the log information of IT devices to help troubleshoot IT problems.


Highlights

Local Data Storage

For security-sensitive customers, the VDS6158 can be deployed locally to protect data privacy.

Data Export

The data stored in the VDS6158 system supports standard API for exporting, which simplifies data transfer to any other 3rd party devices or systems.

Synchronize with Abloomy Cloud Platform

The VDS6158 can synchronize the wireless devices’ location and group information from the cloud platform, visualizing the status of the network applications comprehensively.

Integration with Online Big Data

The offline data in the VDS6158 can be integrated with online big data to provide more in-depth data analytics for customers.

Floor Plan for AP Deployment

The VDS6158 supports floor map importing. According to the physical location, the APs can be deployed to the corresponding position on the map to set up the reference points for LBS.

Location Based Statistics for visitors

The VDS6158 supports area partitioning on the map. It can collect visitor statistics and visualize their density in each area. Business owners can fine-tune their marketing strategies according to the real-time distribution of visitors in their business operation sites and maximize ROI.

Heat Map and Path Tracking

The VDS6158 supports a real-time heat map of visitor distribution, visualizing the location of each dense area. It also supports searching for and visualizing the walking path history of each visitor.

Real-time Status Monitoring

VDS6158 can record and visualize the real-time network access status of users, helping the customer master the operation of the network.

AP Group Based User Statistics

VDS6158 can also synchronize user groups from the Wi-Fi management platform to attain user statistics. User groups can be defined based on multiple attributes such as network services, locations, and users’ roles.

Visitor Information Statistics

VDS6158 can distinguish between new visitors and existing ones; it can also display the number of new visitors and how often an existing one visits the site during each period.

Users’ Status Information

The VDS6158 can record a user’s real-time status including online, offline, roaming, status change, login, logout, re-authentication and user URL.

Hardware Compare

ModelVDS6158
Interface1*front-set USB2.0
2*back-set USB3.0
4*10/100/1000 Base-T ports
1*VGA port
Dimension2U
Probes Limits2048
Memory64G
Hard Disk900G*8 SAS
CPUDouble-process E5
Power Supply500W 1+1 redundant power supply dedicated for server
Operating Temperature0°C~40°C (32°F~104°F)
Storage Temperature-20°C~80°C (-68°F~176°F)
Humidity10% ~ 90%, non-condensing

Specifications

Software

Visitor and User Statistics

Real-time browsing statistics
Time based browsing query
Distribution statistics of visitors
Peak and Idle statistics
Browsing frequency statistics
Region based data statistics
Location based data statistics
Device model statistics
Pseudo MAC filtering

User Access Statistics

User statistics
Access statistics
Authorized user statistics
Authentication statistics
New user statistics

Advertisement Statistics

Ads access statistics
Ads clicks statistics
Ads conversion statistics
Trend chart of Ads traffic
Access statistics of each Ads
Click statistics of each Ads
Comparison of Ads access in different periods
Download Ads statistics report
Ads ranking statistics

Device Statistics

Device based data analysis
Access ranking
Location based AP distribution statistics
Trace of phone number and MAC address

Log Statistics

User state query display
Device upgrade information
Device connection information
Device reboot information
Offline device information
LICENSE configuration
System resource information
Admin’s operation notes
Download log reports

Heat Map

Real-time heat map display
Historical heat map display

Location

Monitor clients online distribution in real-time
Visitors’ walking path history

AP Deployment

Map import
Deploy AP on map
Customize regional division
Customize area distribution

System Management

Account management
System backup and recovery
Data backup and recovery
System performance test
HTTP based Web
