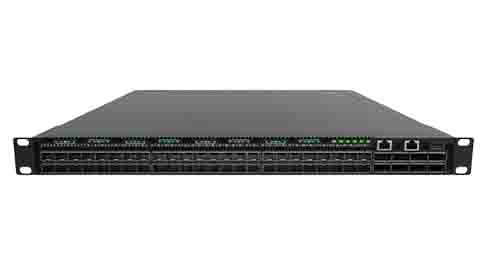

VSW6856-HI
VSW6856-HI switch is a high-performance, high-density port and low latency Ethernet switch, VSW6856-HI is a data center 25G tor switch.
Product Characteristics
High performance, full line speed forwarding
48*25G ports and 8*100G port can be provided, L2 / L3 full line speed forwarding.
Rich data center network characteristics
- supports priority flow control (PFC), enhances transmission selection (ETS), quantifies congestion notification (qcn) and other characteristics, meets the needs of users to build packet free Ethernet in the data center, reduces user costs and simplifies management.
- support the mainstream Vxlan EVPN, and solve the problem that the VLAN number of the traditional data center network is insufficient and the scale is difficult to expand;
- support open API interfaces to meet the implementation and deployment of mainstream SDN technologies
High reliability, multiple stability protection：
- support hot plug power supply and hot plug fan, provide equipment level reliability protection, and adopt redundant backup design scheme for all key components, which greatly improves the stability and reliability of the whole machine;
- provide link level reliability protection, support VRRP, BFD and other link redundancy protocols, support cross device link aggregation technology, realize multi virtual one control plane, and ensure uninterrupted service system.
Hardware Specification
| VSW6856-HI | |
| Port | 48*25G SFP28 and 8*100 QSFP28 port |
| Hot-swappable Power Supplies | 2(1+1) 550W |
| FAN | 5(4+1) Front-to-Rear |
| Dimensions(H×W×D) | 4.4 x 44.5 x 43 cm |
| Weight（kg） | 9kg |
| Input Voltage | 100 ~ 240V，50/60Hz；240VDC |
| Power Consumption | Normal: 280W MAX: 350W |
| Operating Temperature | 0 to 45 ºC |
| Storage Temperature | -40 to 70 ºC |
Software Specification
Feature | VSW6856-HI |
Ethernet | Support full duplex, half duplex, and auto-negotiation duplex Support auto-negotiation port speed Support Jumbo Frame Support Flow Control Support Storm Control Support Port-block Support Port-isolate |
Vlan | Support 4096 VLAN Support Default VLAN Support VLAN mapping |
LAG | Support Static Link aggregation Support LACP Support Static Load Balancing |
Reliability | Support STP/RSTP/MSTP Protocol Support port Loopback Detect Support VRRP Support MLAG Support VARP |
ARP & DHCP | Support static ARP Support dynamic ARP leaning and aging Support Gratuitous ARP Support basic ARP-Proxy and local ARP-Proxy Support DHCP Server Support DHCP Relay Support DHCP Snooping Support DHCP Client |
IPv4 Forwarding | Support IPv4 static routes Support uRPF check Support RIPv1, RIPv2 Support OSPFv2 Support BGP Support Policy-based Routing ( PBR ) Support ECMP |
IPV6 | Support ICMPv6 Support NDP Support IPv6 static routes Support RIPng Support OSPFv3 Support DHCPv6 |
Multicast | Support IGMP v1/v2/v3 Support IGMP agent Support PIM-SM,PIM-SSM,PIM-DM Support MLD v1/v2, MLD v1/v2 snooping Support MVR and MVR6 Support PIM-SM v6 |
Data Center | Support priority-based flow control (PFC) Support VXLAN Support PFC Deadlock detection Support EVPN |
QoS | Traffic classification: based on the combination of the MAC address, IPv4/IPv6 ddress, L2 protocol header, TCP, UTP, outgoing interface, and 802.1p field Traffic behaviors: Access control after traffic classification, Re-marking based on traffic classification (COS, DSCP) Class-based packet queuing Queue scheduling: SP/ WDRR/ SP + WDRR Congestion avoidance: Tail Drop, WRED (Weighted Random Early Detection) |
Security | Support SSH Support Radius Support TACAS+ Support AAA Support access control list(ACL) Support IP source guard Support CPU Traffic Limit Support Prevent DDOS attack Support ACL filtering Telnet/SSH login Support Link-Flapping detection |
Maintenance and Management | support Configurations through CLI (Command Line Interface) support Login through console and Telnet terminals Support Network management based on SNMPv1/v2c/v3 Support Ping、traceroute Support Upload and download files through FTP or TFTP support RMON management of logs, alarms, and debugging information detailed debugging information for diagnosing network faults local Mirror(Port Mirror and VLAN Mirror) |
